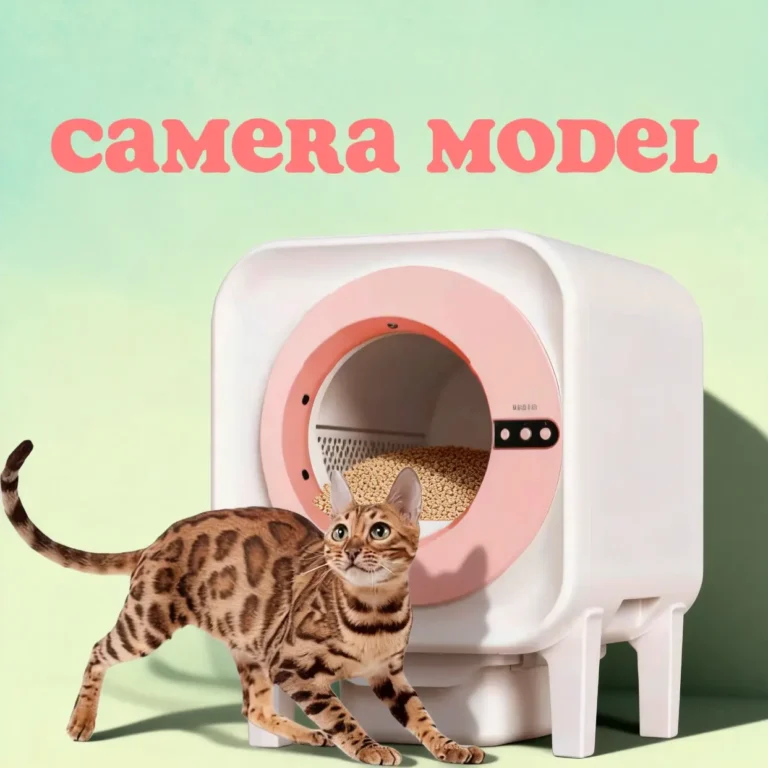

Camera-integrated smart cat litter box for the premium segment

This is Eviehome’s flagship automatic cat litter box, engineered for private-label brands positioning in the USD 499 to 799 retail tier. The product combines a 68-liter rotation drum, an integrated HD camera monitoring the waste chamber, a dual-mode fresh-air ventilation system, UV-C sterilization and six independent safety sensor layers. It is the product we recommend to brands that want to compete with Litter-Robot 4, Petkit Pura MAX 2 and Smarty Pear Leo’s Loo Too on feature parity and reliability.

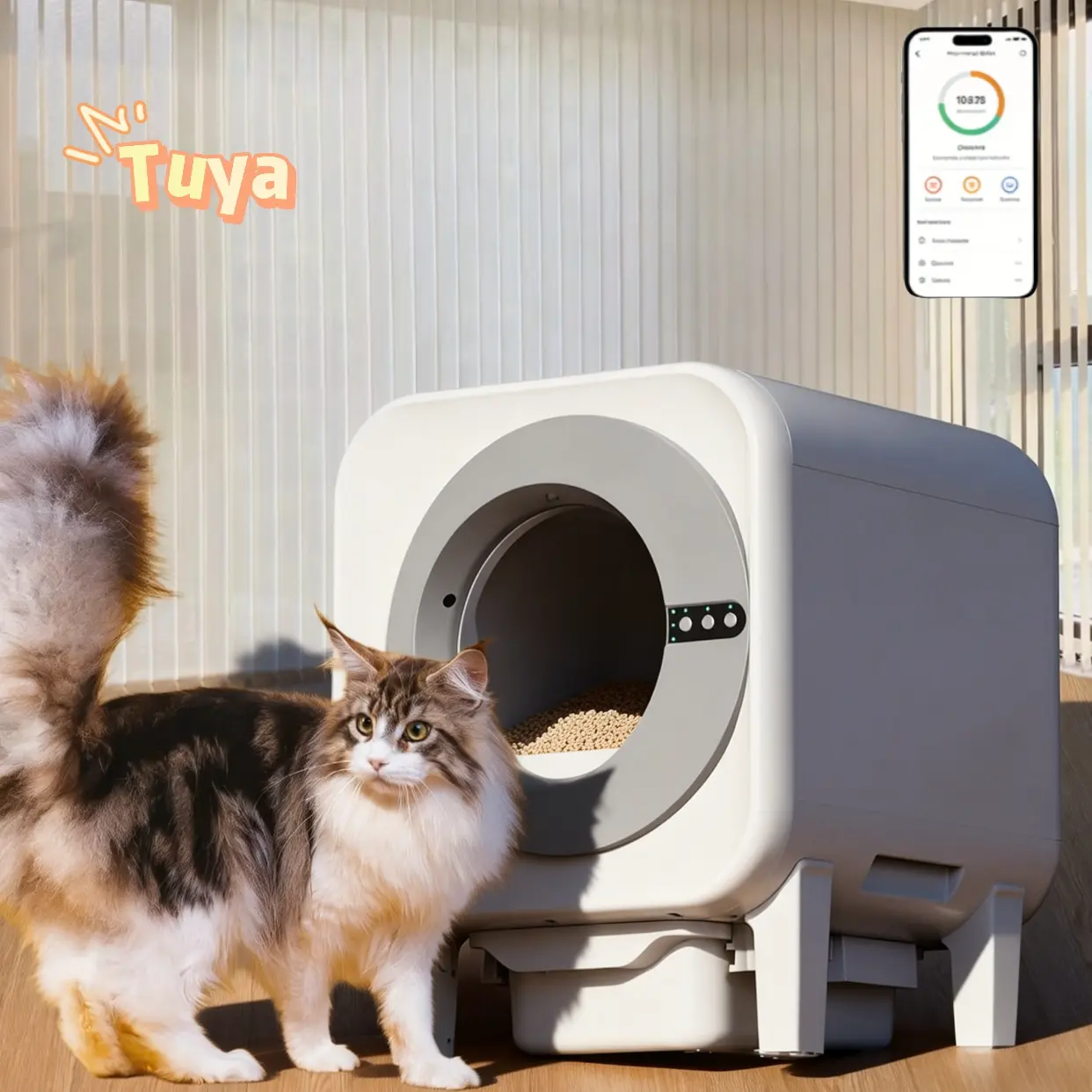

Model reference EVHA002. Available with Tuya Smart platform (Doodle Smart variant) for fast white-label app deployment, or with custom firmware integration for brands running their own Tuya Open SDK stack. Shipped on 45 to 60 day lead time from signed PO, with 500-unit MOQ per SKU and flexible color and packaging customization.

Six-layer safety architecture

The cat safety story is the single most important buyer concern in the category, especially for multi-cat households and households with kittens. This model was designed around a six-layer detection architecture that goes beyond the industry norm:

• PIR living object detection — passive infrared senses the cat approaching and entering the chamber before the rotation cycle starts
• Dual infrared sensors at the cabin door — confirms the cat has fully entered or fully exited before the drum moves
• Four infrared sensors inside the waste chamber — redundant detection of any object or body inside the rotation zone
• Grating sensor — mechanical interruption stop
• Four weight sensors — instant halt if a load is detected during movement
• Hall sensor + child safety lock — physical lock against accidental activation and tampering

This redundancy reduces the residual “cat trapped inside” risk to near zero. It is the kind of spec that survives a 1-star review audit and anchors the premium positioning of a brand sold at USD 599 to 799 retail.

Product specifications

Self Cleaning Litter Box-EVHA002

1. Material: ABS+PP
2. Color: White
3. Adapter voltage: 12V
4. Maximum power: ≤15W
5. Packing quantity: 1 unit/box
6. Applicable APP: Doodle Smart
7. Product dimensions: 48*53*63cm (with legs extended)
8. Packaging size: 57*61*60cm
9. Net weight: 13Kg
10. Gross weight: 15.6Kg
11. Bucket silo capacity: 68L
12. Convenient storage capacity: 9L
1. Low noise: ① Scheduled mute ② Advantaged motor with low noise
2. Odor removal system: ① Ventilation system – optional (Ventilation system ① automatic ② manual: multiple time settings available) ② UV sterilization (sterilization and odor removal)
③Optional fragrance box (2 locations) + activated carbon deodorization: at the air outlet
3. Bucket silo: washable and cleanable;
4. Safety: Six layers of safety protection functions;
PIR living object detection
Two sets of infrared radiation detectors for the cabin door;
Four sets of infrared radiation detectors are installed in the feces collection bin to enhance detection accuracy;
Grating sensor *1;
Weighing sensor *4
Hall sensor:
Child safety lock;
5.A p p: Remote intelligent control; display of temperature and humidity in the silo, weight monitoring; (*Togia Smart APP)
6. Convenience: One-click sand changing, easy and hands-free, sand correction function, leveling and alignment;
7. Applicable pets: cats (1.5KG < weight < 20kg)
8. Filter configuration: Multiple cat litter adaptations (floral mesh: sodium-based mineral sand, bentonite, vertical mesh: tofu, mixed sand)

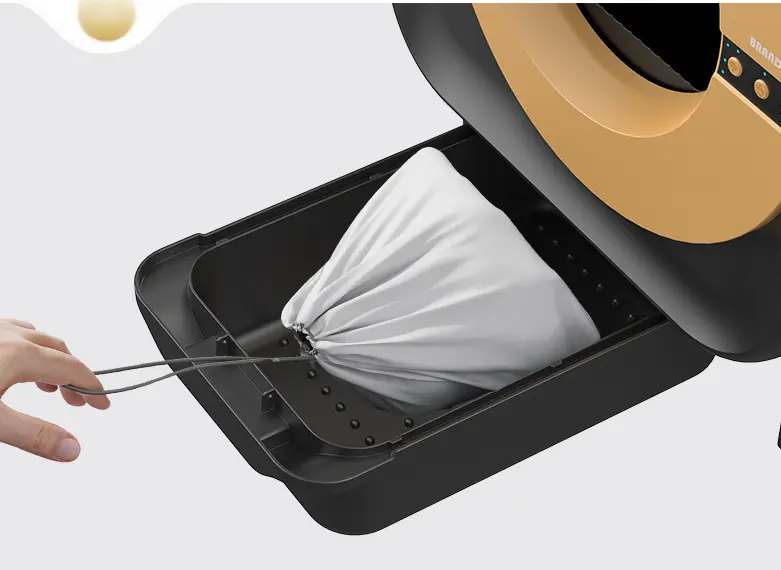

9. The upper cover can be used to place items, and the waste collection bin can be easily pulled and stored.
Accessories
1. Machine body 2. A roll of garbage bags 3. A filter screen 4. Exhaust system + exhaust duct (optional) 5. Adapter 6. User manual (the fragrance box needs to be purchased separately)

Odor and hygiene system

Odor control is the second-most searched complaint in the automatic litter box category. This model addresses odor through a layered approach:

• UV-C sterilization inside the waste chamber neutralizes bacteria and limits biofilm growth between cleaning cycles
• Activated carbon deodorization at the exhaust outlet captures ammonia and volatile sulfur compounds from urine and feces
• Dual-mode ventilation (automatic timed or manual) actively pulls air from the chamber through the carbon filter instead of relying on passive diffusion
• Two fragrance cartridge slots (optional) for brands that want to offer a scented consumable subscription SKU alongside the hardware
• Washable bucket silo — the rotation drum separates completely for deep cleaning every 4 to 6 weeks

The fragrance cartridges are an intentional design for recurring revenue: USD 12 to 18 retail per 4-pack with 70 percent margin, attach rate 25 to 35 percent on hardware buyers.

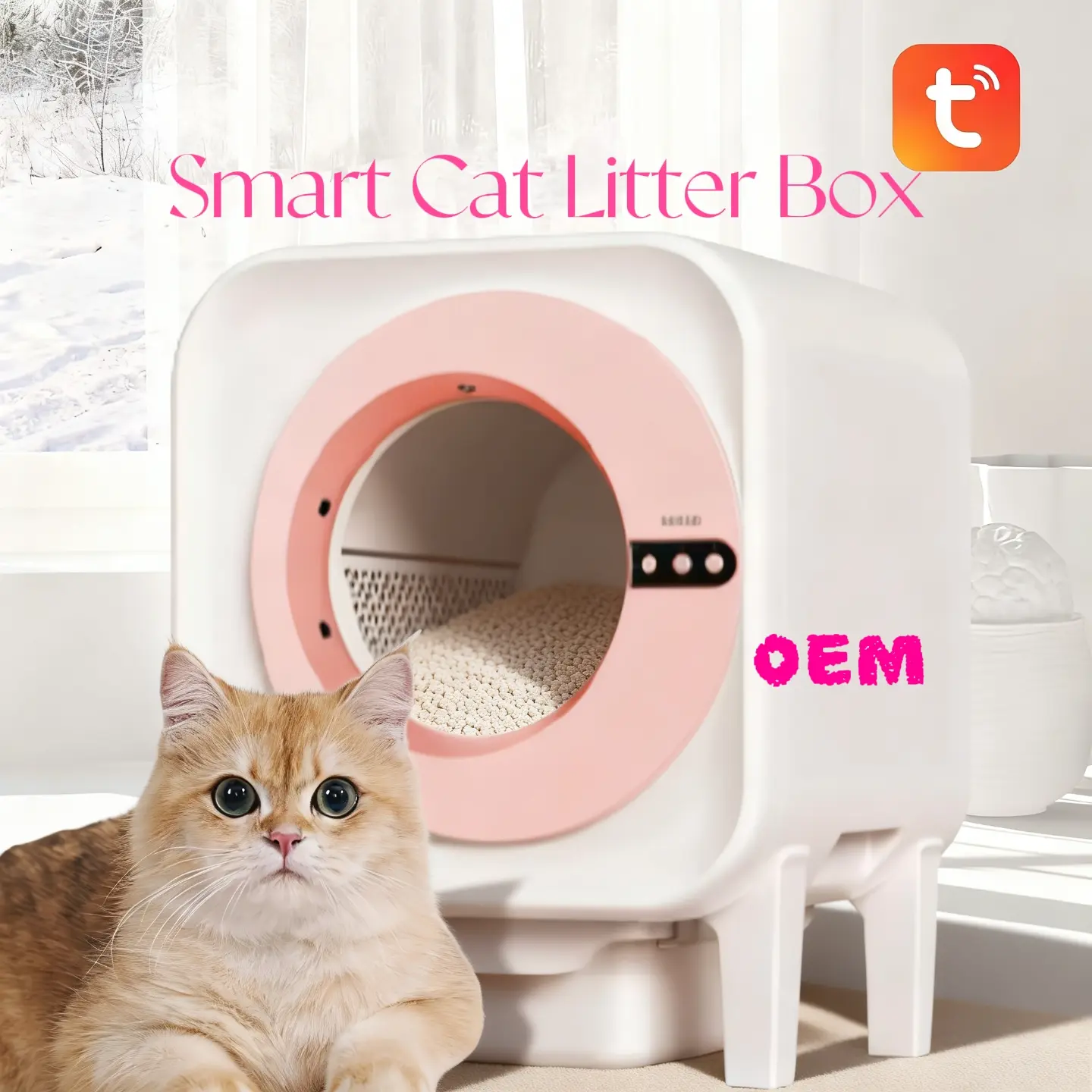

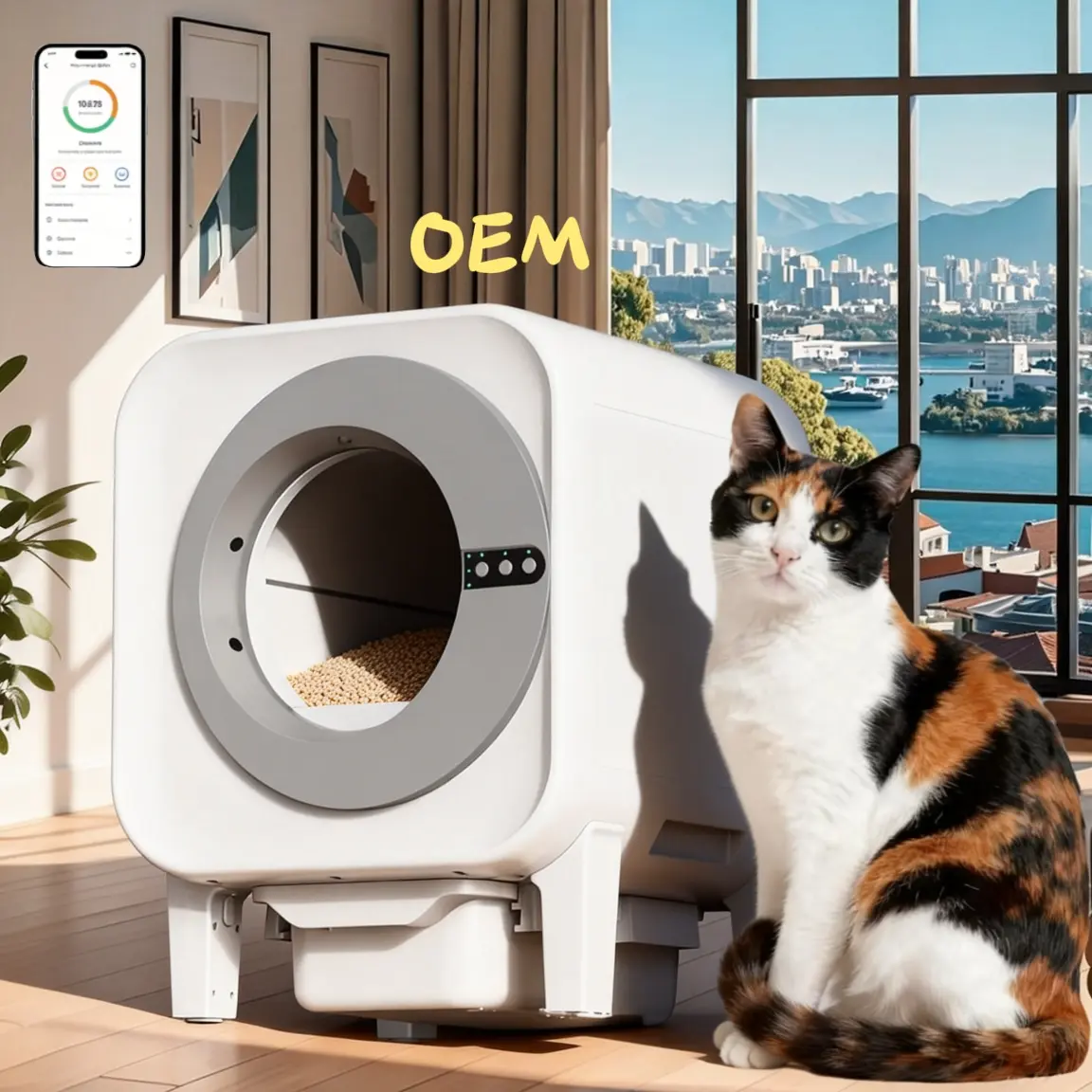

OEM and ODM customization for this model

What we customize at no tooling cost (included in the unit FOB for 500+ unit orders): custom logo printing on the housing, custom Pantone color on the outer shell, custom packaging box artwork with your brand and barcode, custom user manual in your language (English, French, German, Spanish, Italian, Portuguese, Polish, Dutch), custom mobile app theme through Tuya white-label.

What we customize with tooling fees (USD 5 000 to 30 000 one-time): modified housing geometry, bespoke drum interior colors, custom PCB firmware for your cloud backend (AWS IoT Core or custom), regional power adapter variants (US, EU, UK, AU, JP), brand-specific voice prompts recorded in your language.

We do not support resizing the drum below 50 liters or above 80 liters without a new tool. The current 68-liter capacity is optimized for 1 to 3 cat households which is the core market.

Compliance package for this product

Shipped with full compliance documentation for US and EU import: CE marking with RED and EMC test reports, FCC ID for the WiFi module (inherited from ESP32 pre-certification), ROHS test report, REACH SVHC screening with SCIP notification support, UL 1026 electrical safety for US retail buyers who require it, EN 60335 for EU electrical safety. Food-contact verification is not required for this product since the drum does not contact pet food.

The most common buyer-requested additions: UKCA marking for UK-specific Great Britain compliance, RCM (Regulatory Compliance Mark) for Australia, PSE for Japan. All available at USD 1 500 to 4 000 additional test cost per market.

Logistics and container loadability

Net weight 13 kg per unit, gross weight 15.6 kg packed. Package size 57 x 61 x 60 cm. A 40-foot high-cube container holds approximately 240 to 260 units depending on the stacking configuration. A 20-foot container holds approximately 100 to 110 units. Ocean freight from Ningbo or Shanghai: 18 to 25 days to US West Coast, 30 to 40 days to US East Coast, 32 to 42 days to Northern Europe ports.

The unit is oversized for air freight (volumetric weight penalties) so we recommend sea freight as the primary mode. Air freight is available for urgent sample shipments and emergency reorders at USD 8 to 14 per kg to most destinations.

Request a quote

Contact Ryan Lau, our Foreign Trade Manager, at ryanlau@eviehometech.com or WhatsApp +86 199 5653 0913. Send your target market, estimated annual volume, preferred Incoterm (FOB Ningbo, CIF or DDP), and any customization requirements. We return a complete quote with unit FOB, tooling fees if applicable, lead time, and full landed cost projection within 24 business hours.

First-time buyers can request 2 to 3 production samples for testing before committing to the 500-unit MOQ. Sample cost is deductible from the first PO. See also our OEM and ODM services page and our certifications library.
